Answer
Sep 03, 2025 - 09:07 AM

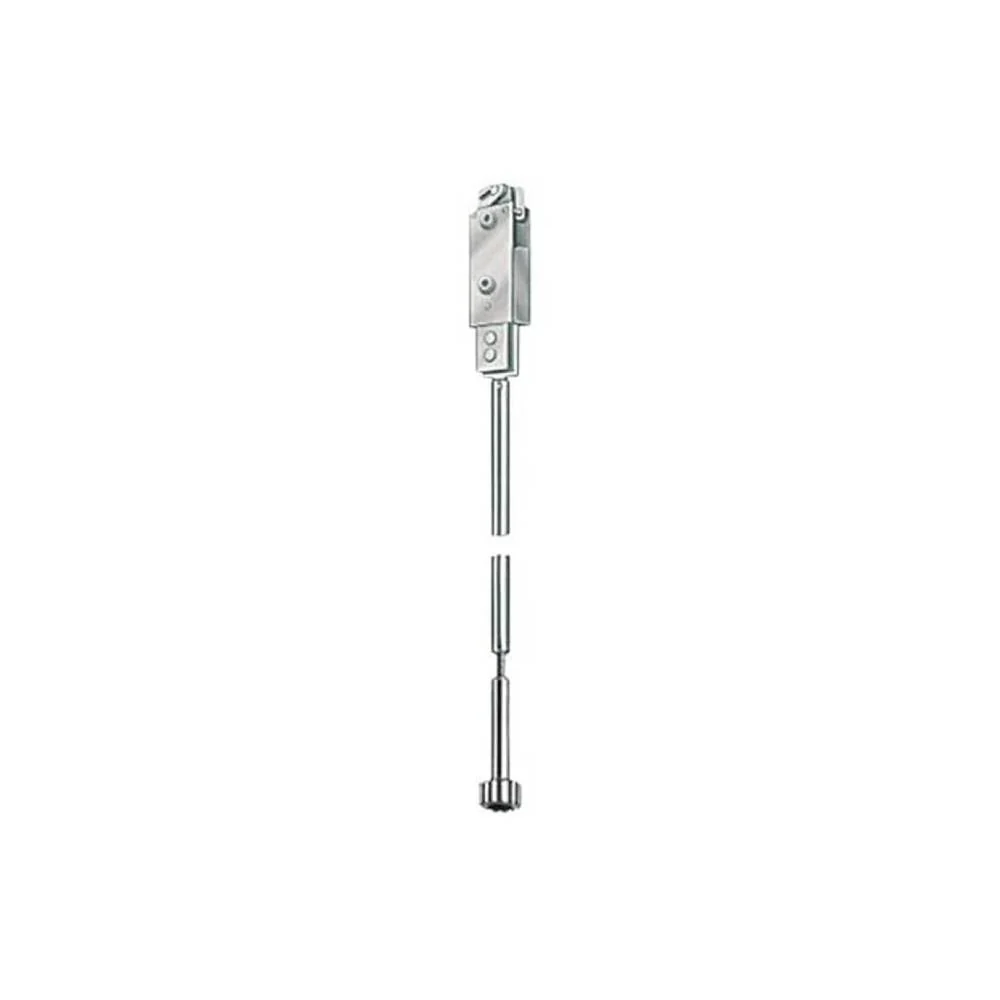

Here’s how to remove and replace the Adams Rite 4085‑01‑IB Header Bolt (used in MS deadlock systems on paired doors):
Removal Steps
Unlock the system fully — The key must be in a positively locked or unlocked position before you can remove the key or the bolt assembly
ACCESS HARDWARE
adamsrite.com
.
Locate the mounting screws — On the door edge (in the inactive leaf), you'll find screws holding the header bolt assembly in place.
Remove the screws — Undo all the screws securing the header bolt.
Slide out the assembly — Once the screws are out, the header bolt assembly can be pulled out from the top of the door
absupply.net
.
Replacement / Reinstallation Steps
With the old assembly removed, prepare to insert the new header bolt from the top of the inactive leaf.
Make sure it aligns correctly, then secure it using the supplied screws.
If included, break off any assembly tabs as indicated in the installation instructions
jmacfiles.s3.amazonaws.com
mfsales.com
.
Adjust the rod length by turning the nylon end to match your setup — this ensures proper engagement with the MS pivoted bolt
ACCESS HARDWARE
mfsales.com
.
