Answer
Aug 05, 2025 - 09:35 AM

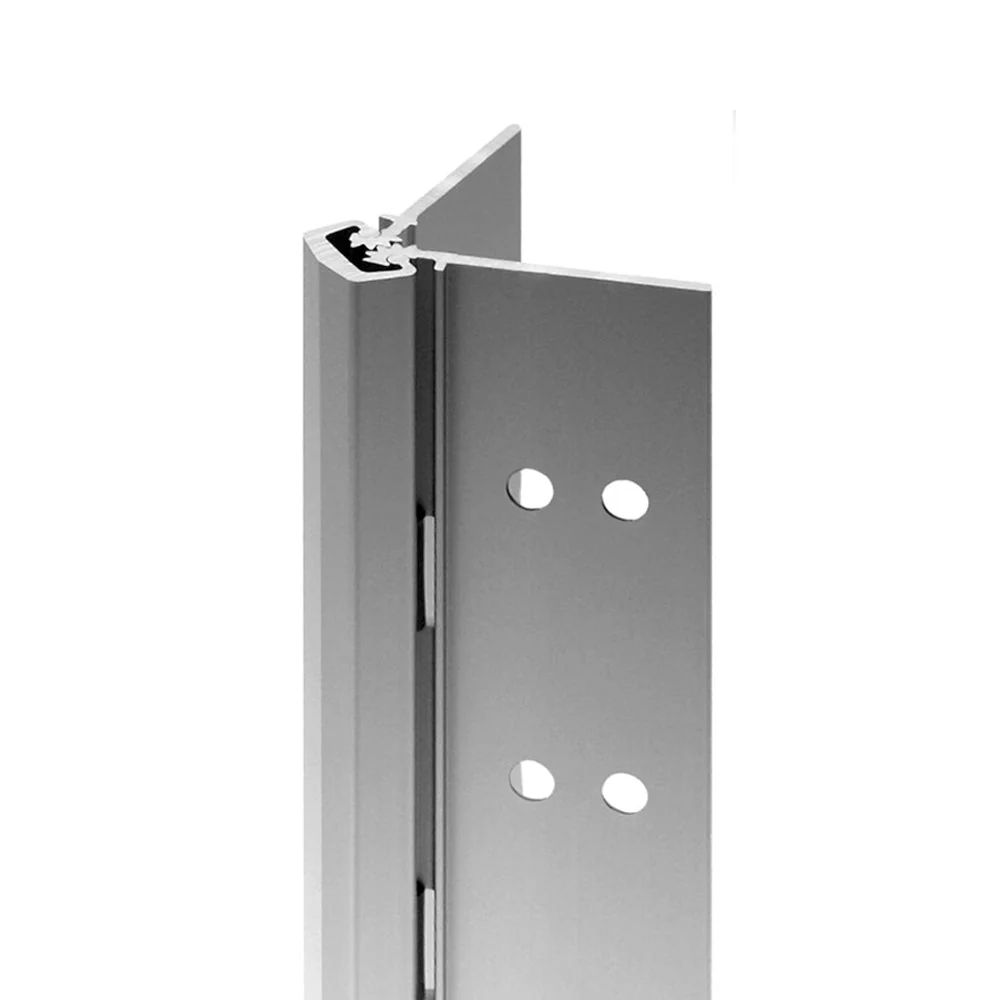

Yes, Select Hinges SL18 HD Geared Concealed Continuous Hinges can be cut to fit a custom door height, but there are important guidelines and best practices to follow:
✂️ Can It Be Cut?
✅ Yes — These hinges are designed to be field-trimmable for custom door openings.
📏 Guidelines for Cutting:
Cut Only from the Bottom (Non-Geared End)
Always trim from the bottom of the hinge, never from the top (where the geared end and thrust bearings are).
This ensures proper alignment and bearing function.
Use the Right Tools
Use a fine-tooth metal cutting saw (e.g., miter saw with an appropriate blade, band saw, or hacksaw).
After cutting, debur the edge to prevent any interference or sharp edges.
Recheck Hole Placement
Be aware: If you shorten the hinge, the pre-drilled mounting holes may no longer align perfectly with your door/frame.
You may need to drill new pilot holes or use undrilled models for full customization.
Do Not Cut if Preloaded or Fire-Rated Without Approval
If the hinge is fire-rated or preloaded with specific torque settings, consult Select Hinges or a certified installer before modifying it.
Cutting may void certifications or warranties.
