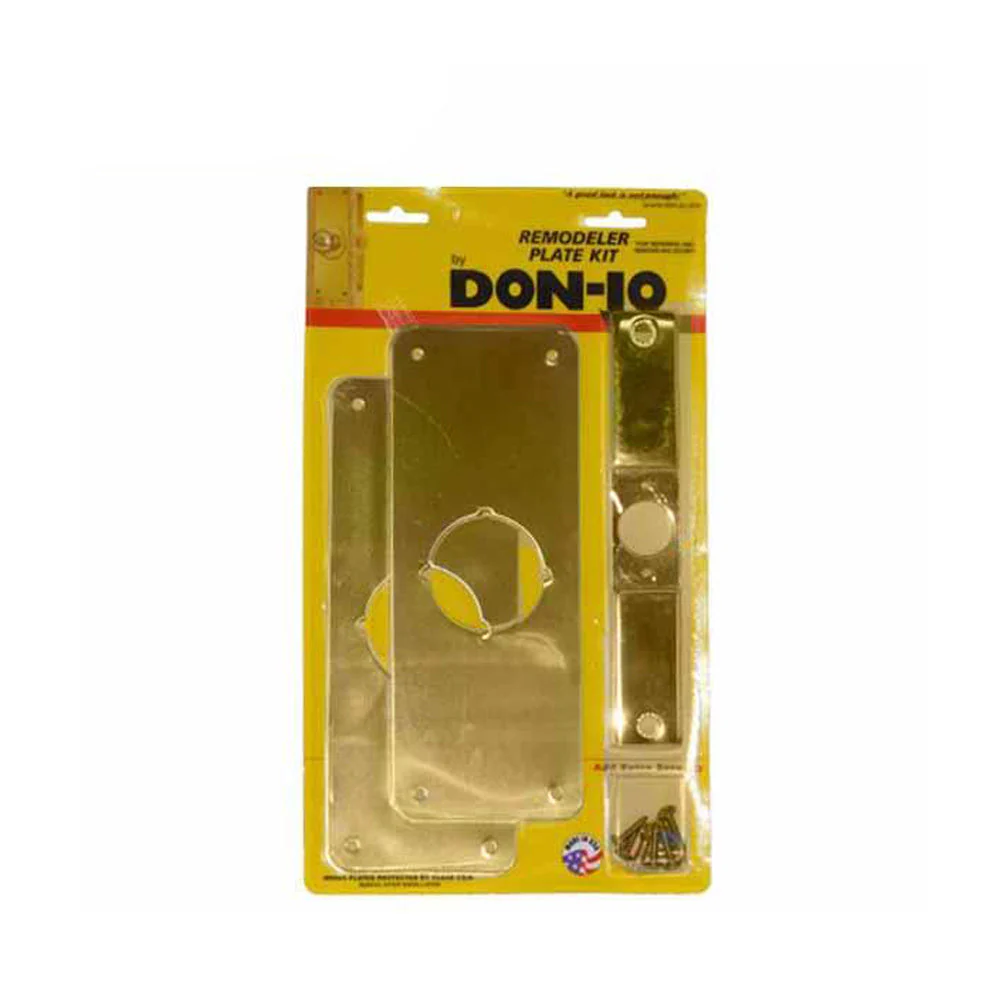

dimensions of each piece Don-Jo - Mortise Remodeler Kit #109 - 605 - Gold / Brass (RPK-109-605)

Cn you please provide the dimensions of both the large plate and also the smaller plate for the edge of the door? The current cut out for the edge plate is 7.5 l x .75 w. I need to know if it will fit. The face plate is currently 7 3/8 l x 3 3/8 w. Thank you

Status: Open Jul 25, 2025 - 03:21 AM

Do you have the same question? Follow this Question

1answer

Answer

Jul 25, 2025 - 03:21 AM

Hi,

Thank you for reaching out.

For the Don-Jo Mortise Remodeler Kit #109 - 605, here are the approximate dimensions:

Large Face Plate (Exterior side): 9" (L) x 3-1/2" (W)
Edge Plate (Latch side): 7-3/4" (L) x 1" (W)

Based on the measurements you provided (7.5" x 0.75" edge cutout and 7-3/8" x 3-3/8" face plate), this kit should offer sufficient coverage and may be suitable for your retrofit — but we always recommend double-checking on-site for proper fit before installation.
