Answer
Nov 07, 2024 - 01:07 PM
he AUTEK 2018+ Chrysler Universal Programming Cable is designed to interface with key programming tools such as the IKEY820, BOSSCOMM, AUTOPROPAD, or other similar devices. It is used for programming keys for Chrysler vehicles manufactured after 2018, including tasks like adding spare keys or dealing with AKL (All Keys Lost) situations. This cable is typically used for vehicles with a Security Gateway Module (SGW), which restricts access to certain vehicle modules without the proper bypass or programming method.
Key Functions of the AUTEK Chrysler Universal Programming Cable:-
Adding Spare Keys: The cable is used to add new or spare keys to Chrysler vehicles, allowing the key programming tool to communicate with the vehicle's OBDII port and bypass the SGW (if needed).
-
AKL (All Keys Lost): If all keys have been lost, the cable allows the key programming tool to program new keys, even in an AKL situation. This typically requires access to both the vehicle’s immobilizer and security systems, which the cable facilitates.
-
Bypassing the SGW (Security Gateway Module): Chrysler vehicles, especially those from 2018 and beyond, often have an SGW that blocks access to certain systems for security reasons. The cable helps bypass this module so that key programming or other related tasks can be performed.

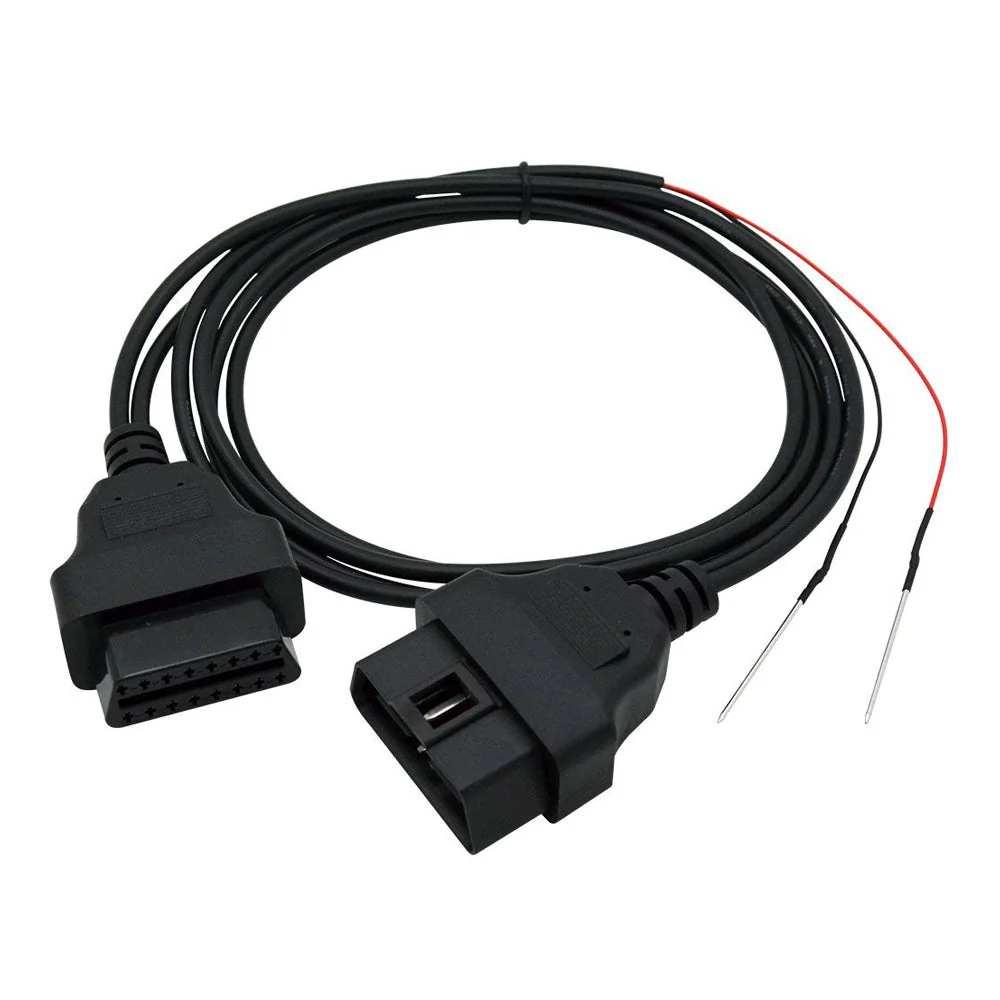

The two pins on the AUTEK 2018+ Chrysler Universal Programming Cable are typically used for the purpose of SGW bypassing. These pins are part of the cable that helps facilitate communication with the vehicle’s security systems, which might otherwise block access to key programming functions. Here's how they are typically used:
-
Bypassing the Security Gateway Module (SGW): The two pins are used to connect to the vehicle's SGW and allow communication between the OBDII port and the key programming tool. Essentially, these pins act as a bridge to bypass the SGW's restrictions and allow key programming to proceed.
-
Connection to the Vehicle's OBDII Port: The two pins are usually inserted into specific terminals of the OBDII connector or an adapter that connects to the vehicle. The exact function of these pins depends on the vehicle’s wiring and the programming tool being used.
-
Connect the Cable: Plug the AUTEK cable into the vehicle's OBDII port.
-
Pin Connection: Depending on the tool you are using (IKEY820, BOSSCOMM, etc.), you may need to connect the two pins to specific terminals on the vehicle or to a special adapter. This ensures that the SGW bypass is properly completed.
-
Run the Key Programming Tool: Follow the instructions from your key programming tool (such as IKEY820 or AUTOPROPAD) to initiate the key programming process. The tool will communicate with the vehicle through the cable and bypass the SGW if necessary.
-
Complete the Key Programming: Once the SGW is bypassed (if applicable), the tool will proceed with adding the spare key or reprogramming the new key, whether it's for a regular spare key or in an AKL (All Keys Lost) situation.
